ZT600 RFID Industrial Printers

Products > RFID Printers > ZT600 RFID Industrial Printers
ZT600 RFID Industrial Printers
  • ZT600 RFID Industrial Printers
  • ZT600 RFID Industrial Printers
  • RFID Industrial Printers

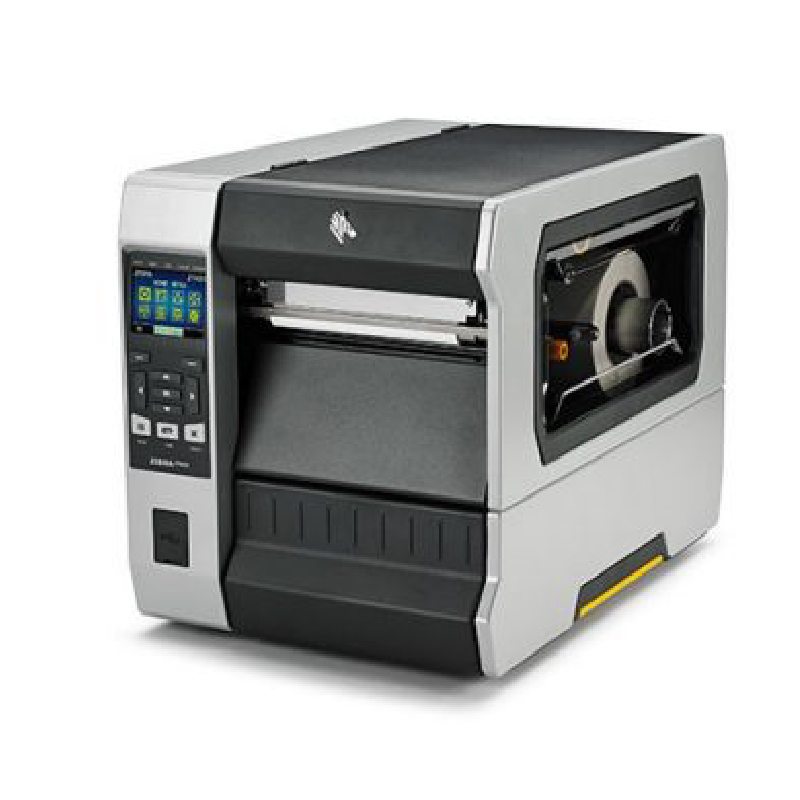

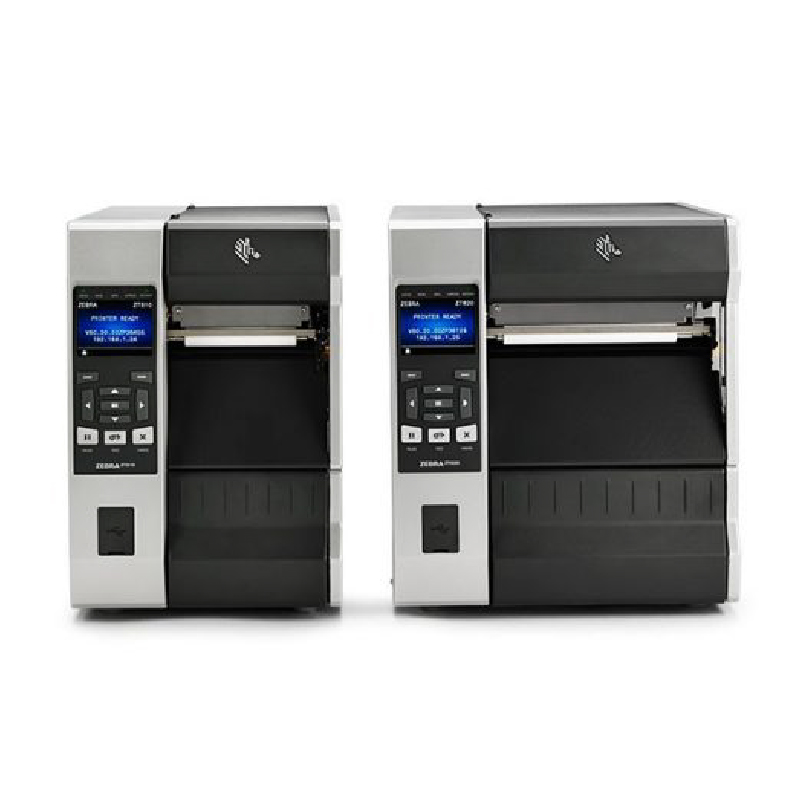

ZT600 RFID Industrial Printers

To stay ahead in today’s highly competitive manufacturing or transportation & logistics industries, you need technology solutions that will grow with your business. ZT600 Series printers combine industrial durability and user-friendly features with future-proof adaptability—including a factory- or field-installable RFID encoder—to meet your evolving needs for years to come. Gain greater visibility of your printing systems with Link-OS® applications and managed Operational & Asset Visibility Services (OVS/AVS), plus the ability to deepen your insight into your entire business with advanced RFID printing and encoding.

Expand your view with industry-leading tracking technology

It only takes five minutes to upgrade the ZT610 and ZT620 to RFID encoding in the field. Once RFID-enabled, these printers are engineered to accurately and efficiently print and encode labels for today’s most advanced item-level tracking applications. Adaptive encoding enables media flexibility and simple RFID calibration, eliminating complex placement guides. An intuitive menu further reduces setup time. And Zebra’s RFID technology is certified on six continents, providing operational visibility and business insight across complex, multinational supply chains.

Get 24/7 reliability, even in the harshest environments

Built to deliver outstanding print quality under the most challenging industrial conditions, ZT600 Series printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. Guided instructions and feedback eliminate common errors and reduce manual adjustments for highly consistent printing. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications. A field-installable, full-width, guillotine-style cutter with catch tray is ideal for apparel tag applications

Reduce RFID Media Costs

Tags are spaced incredibly close together, with a distance (pitch) of 0.6"/16 mm or narrower on most RFID inlays—smaller than what other printer/encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughput.

Specifications

RFID

  • Allows users to track performance with RFID job-monitoring tools

  • Supports tags compatible with:UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

  • Integrated RFID system isuser-upgradeable in the field and available on both 4" and 6"models

  • Adaptive Encoding Technologyautomatically selects optimum encode settings

  • Supports industrystandard,multi-vendor, chip-based serialization

  • Supports block permalocking ofuser memory compatible with ATA Spec 2000

Standard Features


  • Simplified icon menu navigation system categorizes settings into logical groups of functions

  • Print Methods: Thermal transferand direct thermal printing

    Construction: Metal frame andbi-fold metal media cover with enlarged clear viewing window

  • Side-loading supplies path forsimplified media and ribbon loading

  • Thin film printhead with E3™Element Energy™ Equalizer for superior print quality

  • Communications: USB 2.0,high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

  • Highly visible color displaythat turns red when the printer is in an error state allows operators todetermine printer status from a distance


Printer Specifications

Resolution

203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT610 only)

Memory

1 GB RAM memory
2 GB on-board linear Flash memory

Maximum Print Width

ZT610: 4.09"/104 mm
ZT620: 6.6"/168 mm

Maximum Print Speed

ZT610: 14 ips/356 mm per second
ZT620: 12 ips/305 mm per second

Media Sensors

Dual media sensors: transmissive and reflective

Maximum Continuous Print Length

ZT610
• 203 dpi: 150"/3810 mm
• 300 dpi: 130"/3302 mm
• 600 dpi: 30"/762 mm
ZT620
• 203 dpi: 150"/3810 mm
• 300 dpi: 100"/2540 mm

Media Characteristics

Media Width

ZT610
• 1.00"/25.4 mm to 4.5"/114 mm tear/cutter
• 1.00"/25.4 mm to 4.25"/108 mm peel/rewind
ZT620
• 2.00"/51 mm to 7.0"/178 mm tear/cutter
• 2.00"/51 mm to 6.75"/171 mm peel/rewind

Maximum Media Roll Size

8.0"/203 mm O.D. on a 3"/76 mm I.D. core

Thickness

0.0023"/0.058 mm to 0.010"/0.25 mm

Media Types

Continuous, die-cut, notch, black-mark
